AEM gauges (water temp, oil & fuel psi, boost w/controller, A/F)
Quantity Views Date Posted
1 2023 Tue June 9, 2015
Asking Price Shipping Amount Condition
Best Offer None Excellent
Description: I switched over to all Autometer gauges and need to sell these. They have been sitting in my spare parts bin for about 2 years. They come as pictured. I will sell individually or all together.


All gauges come with both silver and black bezels and the changeable faces as they did from AEM new. All gauges will come with the harness but it has been cut from original length. Now between 12"-36". All gauges with come with the original box and instructions.


AEM 30-4402
water temp gauge (same as oil temp, and trans temp), comes as pictured with a new unused sending unit.
$115 shipped

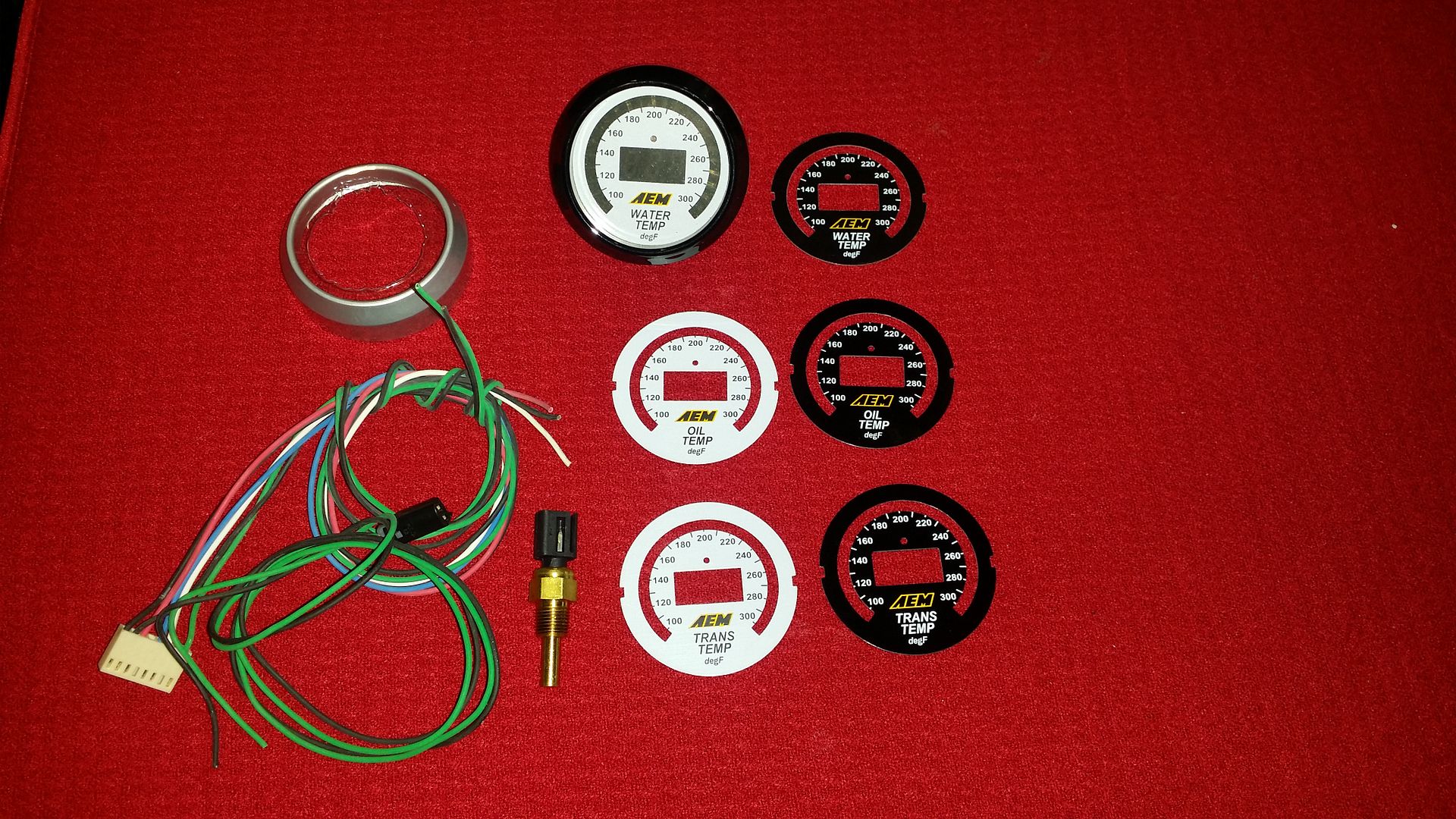

http://i139.photobucket.com/albums/q313/robertbarton76015/dash/20150609_153915.jpg
[AEM website]The AEM Digital Water Temperature Gauge combines unsurpassed accuracy, speed and control with an easy-to-read digital LED interface that displays water temperature in 1 degree increments, and a sweeping LED "needle" that lines the edge and moves as water temperature changes from 0 to 300. The water temperature gauge's digital readout will automatically increase and decrease in intensity due to the built in ambient light sensing photocell.


AEM's digital water temp gauge includes a 0-5v analog output for use with data loggers and virtually any engine management system, such as the Infinity ECU, Series 2 EMS or AQ-1 Data Logger, making it the perfect solution for users who need to monitor and data log water temp at high RPM on tuned engines. Each gauge includes interchangeable silver and black bezels and black and white faceplates to personalize the look of your gauge.
[/quote]


AEM 30-4401
oil pressure (same as fuel psi), comes as pictured with 0-100 sending unit.
$135 shipped

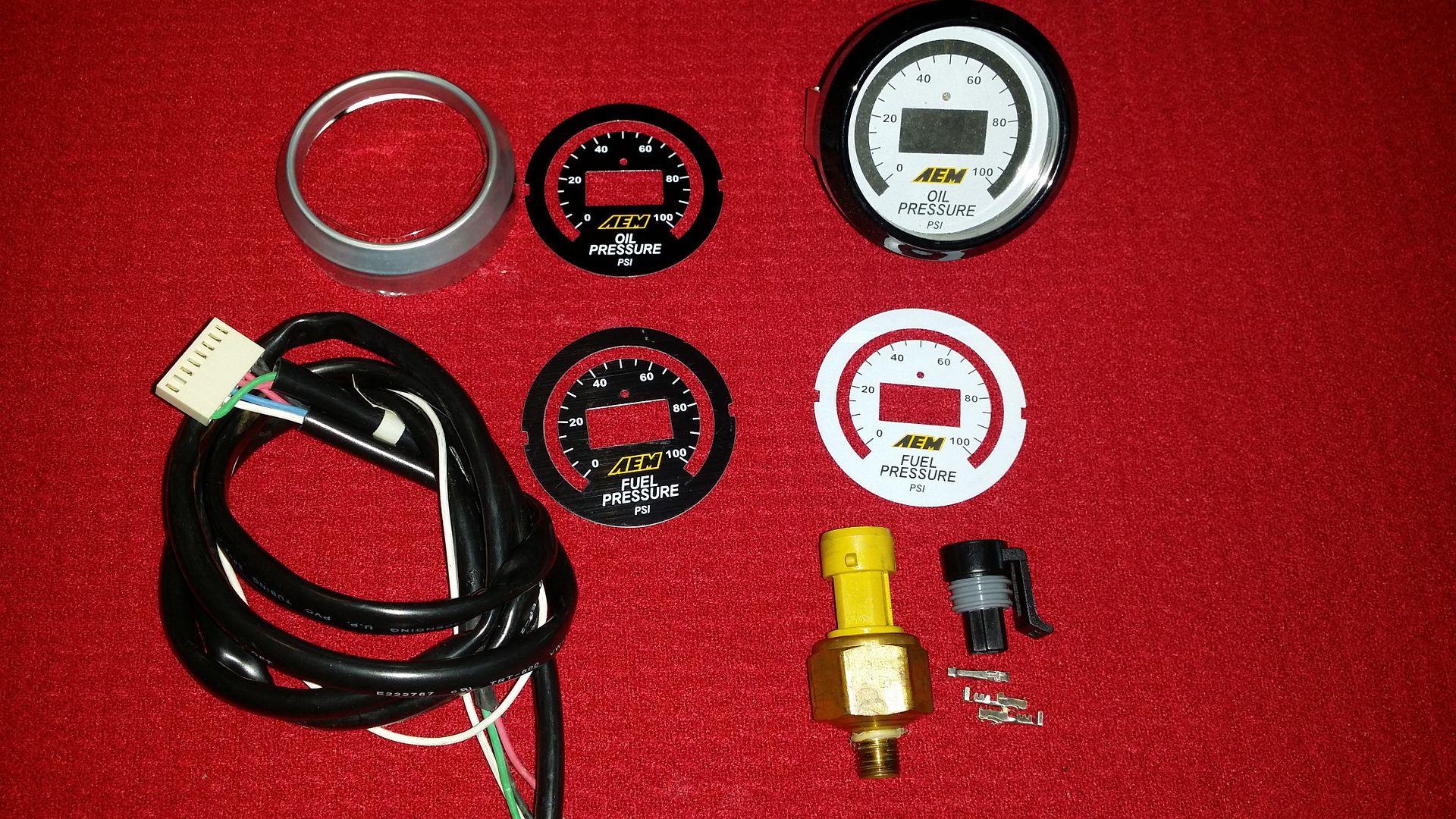

http://i139.photobucket.com/albums/q313/robertbarton76015/dash/20150609_154633.jpg
[AEM website]AEM Digital Oil Pressure Gauges combine unsurpassed accuracy, speed and control with an easy-to-read digital LED interface that displays oil pressure in 1 PSI increments, and a sweeping LED "needle" that lines the edge and moves as oil pressure changes from 0 to 100. The oil pressure gauge's digital readout will automatically increase and decrease in intensity due to the built in ambient light sensing photocell.


AEM's digital oil pressure gauges include a 0-5v analog output for use with data loggers and virtually any engine management system, such as the Infinity ECU, Series 2 EMS or AQ-1 Data Logger, making them the perfect solution for users who need to monitor and data log oil pressure at high RPM on tuned engines. Each gauge includes interchangeable silver and black bezels and black and white faceplates to personalize the look of your gauge.
[/quote]



AEM 30-4401
fuel pressure (same as oil psi), comes as pictured with 0-100 sending unit
the rear studs have been cut off to fit in autometer cluster pod. The gauge is slightly larger than a SAE 2-1/16" so they all fit tight without the rear brackets anyways
$125 shipped

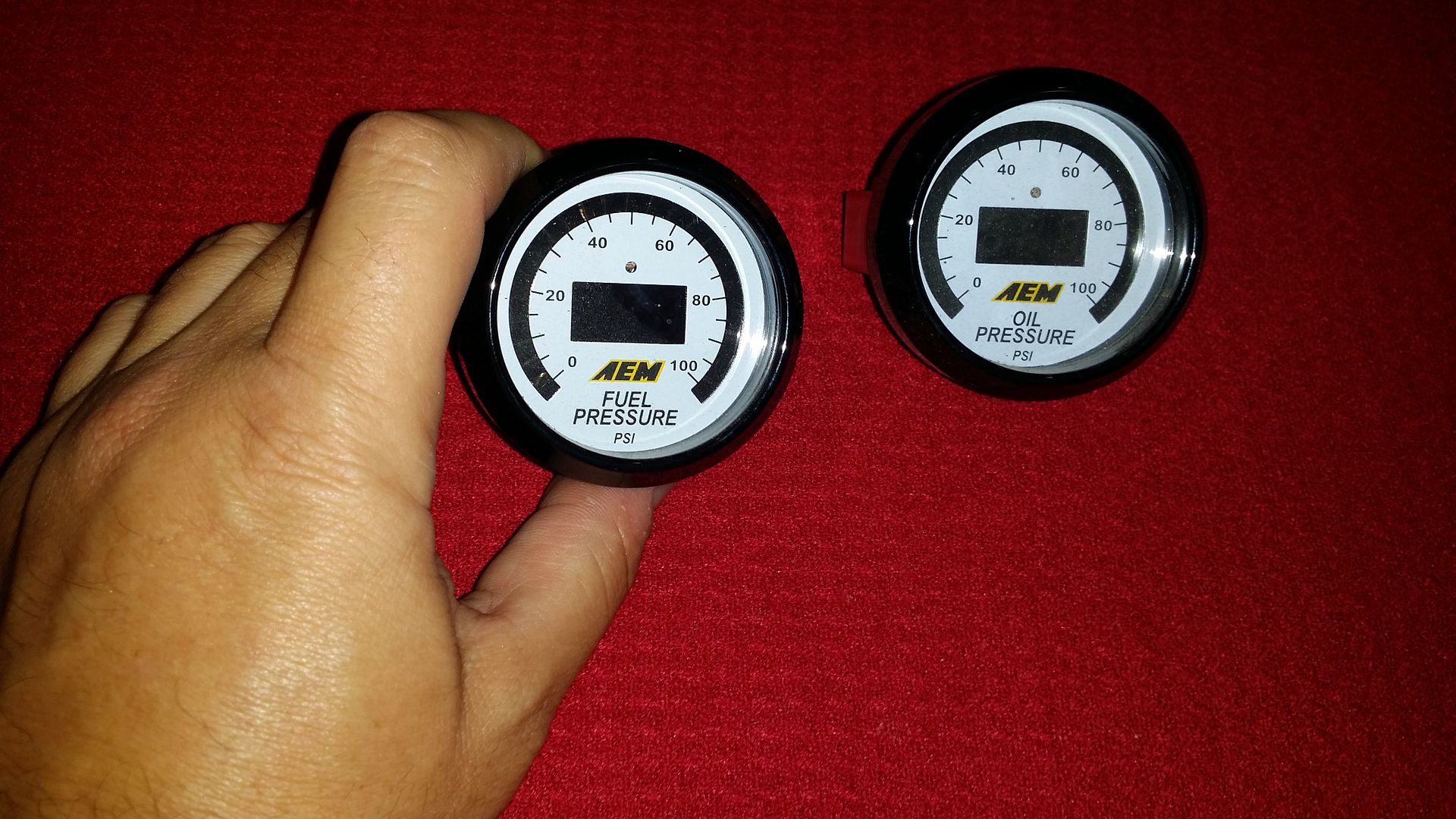

http://i139.photobucket.com/albums/q313/robertbarton76015/dash/20150609_154843.jpg
http://i139.photobucket.com/albums/q313/robertbarton76015/dash/20150609_154633.jpg
[AEM website]AEM Digital Fuel Pressure Gauges combine unsurpassed accuracy, speed and control with an easy-to-read digital LED interface that displays fuel pressure in 1 PSI increments, and a sweeping LED "needle" that lines the edge and moves as fuel pressure changes from 0 to 100. The fuel pressure gauge's digital readout will automatically increase and decrease in intensity due to the built in ambient light sensing photocell.


AEM's digital fuel pressure gauges include a 0-5v analog output for use with data loggers and virtually any engine management system, such as the Infinity ECU, Series 2 EMS or AQ-1 Data Logger, making them the perfect solution for users who need to monitor and data log fuel pressure at high RPM on tuned engines. Each gauge includes interchangeable silver and black bezels and black and white faceplates to personalize the look of your gauge.
[/quote]


30-4350
Boost gauge and controller, comes as pictured and is a MECHANICAL gauge in this configuration but I will include the harness to upgrade to electric sending unit that you will have to provide.
$185 shipped

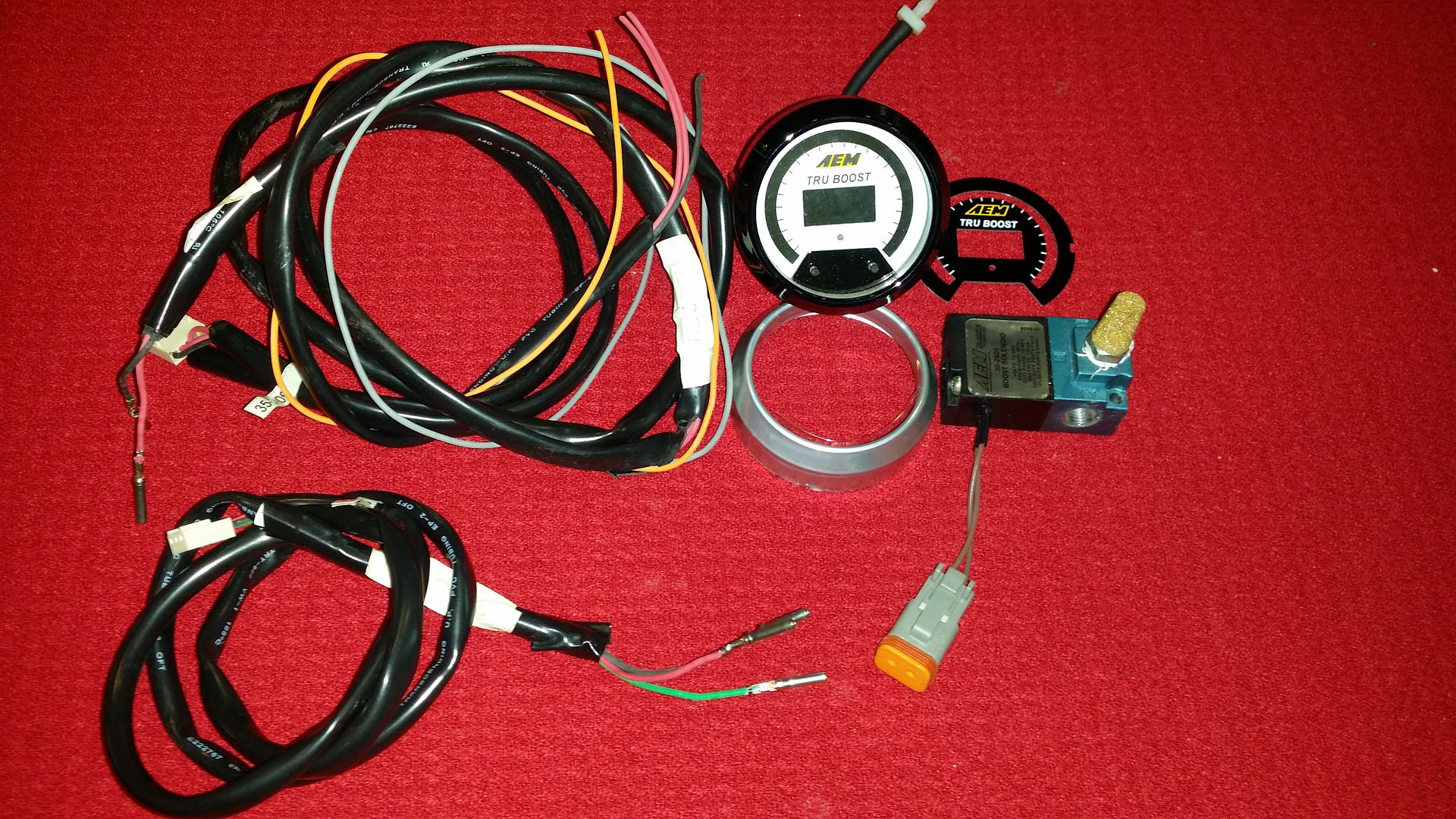

http://i139.photobucket.com/albums/q313/robertbarton76015/dash/20150609_155653.jpg
[AEM website]The TRU-BOOST boost controller gauge includes an on-board 29 PSIg pressure sensor, built-in overboost protection with two timed shutdown levels, a scramble boost setting and a low-side output for a warning light. A 75 PSIa boost sensor for high boost applications is sold separately (please see TRU-BOOST 5 BAR Ugrade Kit).


AEM’s boost control solenoid is included with the TRU-BOOST controller gauge. It is specifically manufactured for automotive boost applications and will not corrode and stick from exposure to rich fuel mixtures or oil vapor. It is pressure tested to 100 psi and includes barbed fittings and -4 AN fittings to eliminate any chance of leaks.


No external interface required for programming!
Two user selectable boost settings with peak boost memory
Scramble boost setting allows user to momentarily change boost levels
User configurable gauge includes 24 scalable LEDs
Interchangeable black and white bezel, black and silver pin guide and black and white faceplate to customize look of display
One (1) low-side output included for warning lights
52mm gauge diameter [/quote]


30-4100
AEM Wideband UEGO Air/Fuel gauge..............I will only sell this with the above gauges or after they have sold. It is still in the car. I can get a picture later.
$135 shipped
[AEM website]AEM’s legendary Digital Wideband O2 AFR UEGO Gauge is a wideband UEGO air/fuel ratio controller (AFR) and gauge in one. It unites accuracy, speed and control with an easy to read, digital LED display and sweeping LED “needle” that changes colors as AFR changes from rich to lean.


NOTE: The 30-4100 Wideband UEGO Gauge Controller that uses the Bosch 4.2 LSU sensor will be superseded to the 30-4110 Wideband UEGO Gauge Controller that uses the Bosch 4.9 LSU sensor in August 2014. Instructions for the 30-4100 will still be available in the Instructions tab after this change. [/quote]


I will sell all the above together for $600 shipped, no less.


All prices are shipped CONUS only and shipped regular ground unless we agree to other arrangements. I accept PAYPAL and will cover the 3% on my end.


I am selling to fund a Holley EFI Digital Dash so no trades please.
For Sale/Wanted: For sale
Location: Haslet
Keywords: AEM gauges (water temp, oil & fuel psi, boost w/controller, A/F)


more

Author
slowturbocar
Time Served


Registered: November 2010
Posts: 455
Comment Date: Wed October 19, 2016
Is the AEM wideband still for sale?
